About Copper Cathode

Copper Cathode

Copper is a chemical element with the symbol Cu (from Latin: cuprum) and atomic number 29. It is a soft, malleable, and ductile metal with very high thermal and electrical conductivity. A freshly exposed surface of pure copper has a pinkish-orange color. Copper is used as a conductor of heat and electricity, as a building material, and as a constituent of various metal alloys, such as sterling silver used in jewelry, cupronickel used to make marine hardware and coins, and constantan used in strain gauges and thermocouples for temperature measurement.

Product Introduction:

Molecular formula: Cu
Molecular weight: 63.55
Physical properties: Copper is a soft, malleable, and ductile metal with very high thermal and electrical conductivity. It has a pinkish-orange color when freshly exposed. Copper has a melting point of 1084.62°C and a boiling point of 2562°C. It has a density of 8.96 g/cm³ and is highly resistant to corrosion.

Copper Cathode Specifications

Specifications: Chemical Composition

Electro copper Cathode Grade-A-99.99%

Dimension: 914mm x 914mm x 12mm (approx.)(+/- 1%)

1. Weight of each sheet: 125kgs (+/- 1%)
2. Net weight of each pallet: 2MT (+/- 1%)
3. Weight of each container: 27MT approx.
4. Gross weight of each container: 27MT approx.
5. Copper (Cu) min %: 99.97 - 99.99%

Main applications:

Copper cathodes are used in the production of high-purity copper and copper alloys. They are essential in electrical engineering for producing electrical wires, cables, and connectors due to their excellent conductivity. Copper is also used in building construction for plumbing and roofing materials.

Specification: Copper Cu 99.97% - 99.99%

Element	Value
Copper (Cu)	99.99%
Sulphur (S)	4 ppm Max.
Argent (Ar)	10 ppm Max.
Nickel (Ni)	0.2 ppm Max.
Antimony (Sb)	0.1 ppm Max.
Cobalt (Cb)	0.2 ppm Max.
Bismuth (Bi)	0.1 ppm Max.
Telurium (Te)	0.05 ppm Max.
Magnesium (Mg)	0.4 ppm Max.
Ferrum (Fe)	2 ppm Max.
Oxygen (O2)	0
Lead (Pb)	0.2 ppm Max.
Selenium (Se)	0.3 ppm Max.
Silica (Si)	0.3 ppm Max.
Arsenic (As)	0.1 ppm Max.
Manganese (Mn)	0.1 ppm Max.
Aluminum (Al)	0.5 ppm Max.

Product features:

1. High purity and conductivity.
2. Excellent corrosion resistance.
3. Superior malleability and ductility.
4. High recyclability.
5. Wide range of industrial applications.

Packing:

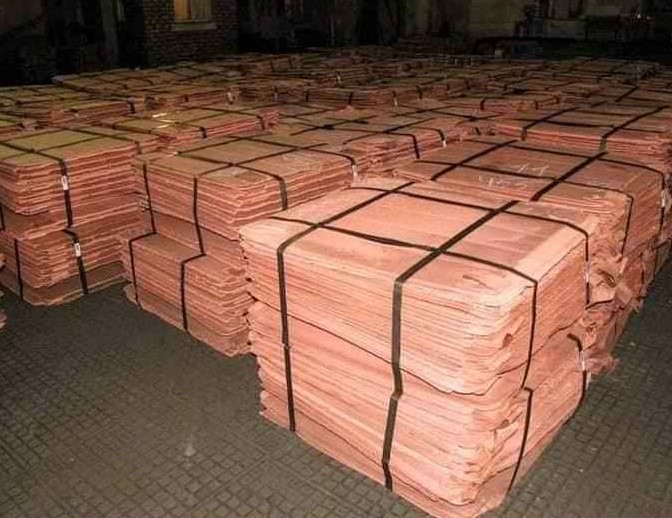

Copper cathodes are typically packed in bundles, wrapped in protective materials to prevent oxidation, and strapped securely to avoid movement during transportation.

Note:

The specifications and packaging of copper cathodes can be customized according to customer requirements.

MSDS Copper
